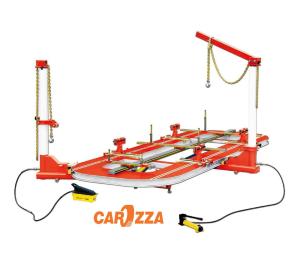

Car frame machine Car bench Car Collision Repair Machine 5328mm
Outstanding Results to Car Body Repair Work
Collision repair system is versatile and universal equipment used for car body repairs. These systems are equipped with drive-on ramps and a scissor lift, making car fastening quick and easy. The structure of the straightening bed is specially designed to provide easy access to the vehicle chassis for tasks such as straightening, measurements, re-assembly, servicing, and other repair jobs on the car.
What is the advantage of repair?
Replacement costs can be significantly reduced by restoring worn components rather than replacing them. This is especially the case when the damage or wear is limited in areas
The feature of MCR-101-Car bench:
1.Equipped with one America orginal ENERPAC high pressure pneumatic hydraulic
pump,one America original ENERPAC high pressure manual hydraulc pump
2.High applicabity PTP auto body gauge measure system.
3.14 pieces sheet metal tools
4.Fixed height working platform,could not be adjusted
Comparison of Collision Repair System-Car bench:
| | MCR-101 | MCR-201 | MCR-301 |
| Bench Length | 5328mm | 5328mm | 5328mm |
| Bench Width | 2000mm | 2000mm | 2000mm |
| Bench Height | 320mm | 535mm | 320-620mm |
| Pulling Tower Size | φ133*2000mm | φl33*2000mm | φ133*2000mm |
| Pump | One pes pneumatic pump
One pcs Manual pump | Two pcs Pneumatic pump | Two pcs Pneumatic pum |
| Meta Tools | 14 pcs | 14 pcs | 16 pcs |
| Net Weight | 2300kg | 2300kg | 2500kg |
| Gross Weight | 2500kg | 2500kg | 2800kg |
| Working Air Suppler Press | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| Max Hydraulic Pressure | 69Mpa | 69Mpa | 69Mpa |
| Max Pulling Force of PullingTower | 98000N | 98000N | 98000N |
| Radius of Pulling Tower | 360° | 360° | 360° |
| Measure System Precision | 2mm | 2mm | 2mm |
